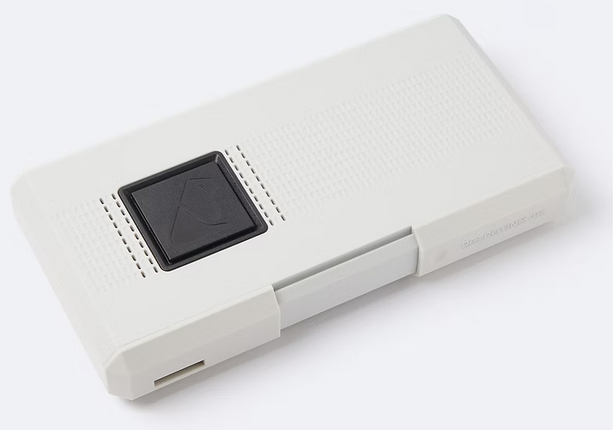

The RetroTINK-4K CE is a lower cost version of the RT4K platform. Check out our blog post for the key differences between the CE and Pro models.

Outputs

HD Digital Video up to 4K60.
Flexible output modes including 480p, 1080p, 1440p at various refresh rates (60/120/etc.
Custom modelines possible via a text file on the SD card
Fully buffered video (drop-free on input changes), Gen Locked and Frame Locked sync modes
HDR10 output with full color correction to Rec. 2020
User selectable colorimetry (Rec. 709, Rec. 2020, sRGB, etc.)
High frame rate output modes: 1440p120, 1080p120
Optional deep color output (10 bits at 4K60 may not be compatible with all displays)
Up to 8-ch LPCM audio

Inputs

Wide array of inputs that support virtually every single format out of the box
HD15/VGA:
- RGBHV
- RGBS
- RGsB
- YPbPr
- S-Video
- Composite
SCART
- RGBS
- RGsB
- YPbPr
- S-Video
- Composite
Rear RCA
- YPbPr
- RGsB
- Composite
Front Composite
Front S-Video
Analog audio input up to 96 kHz/24-bit wth full gain control
Optical TOSLINK audio input supporting 2-Ch LPCM or compressed surround
Audio input can be independently selected of video source
HD Digital Video 1.4 Input supporting up to 1920x1080p60/1920x1200p60 CVT-rb and 8-Ch LPCM or compressed surround

Analog Video

Automatic gain calibration
Automatic input cropping to trim borders
Full control of gain, offset and sample rate
Robust composite/S-video decoder with multi-region support (NTSC, PAL, PAL-60, SECAM)

Scaling

Fully flexible, custom cropping and zooming in the horizontal and vertical space independent of other settings
Automatic aspect ratio correction to 4:3 or 16:9
Motion Adaptive deinterlacing

CRT Simulation

Multiple CRT beam profiles
Fully configurable CRT beam strength and intensity modulation
Adjustable CRT masks and strength
Interlaced video simulation with offset scanlines
LCD simulation patterns that automatically adapt to scaling, including non-integer factors

Image Processing

End to end RGB pipeline with internal 12-bit precision
Conventional gamma and approximated modes to minimize quantization error
Advanced and fully configurable gamma and perceptual quantizer (HDR)
Advanced color gamut transforms to simulate different display technologies
Linear light processing

Profiles

User profiles stored on SD card
Profiles can be assigned to 1-12 buttons on remote
Auto-load profile on powerup
Includes profiles made by legends FireBrandX and Wobbling Pixels

User Interface

Advanced OSD menu based system
Custom branded remote control
Firmware upgradable via SD card

Product Contents

RetroTINK-4K Unit
8GB SD Card with pre-loaded software and profiles
Remote Control
USB-A to USB-C power cord
Due to wide range of international plug types as well as product liability with AC adapters, we are not including a power brick. You may use any USB source supplying at least 5V/2A.

User Manual

The user manual is hosted at the RetroTINK-4K Wiki and is updated as new features are added.

Firmware Updates

Official updates can be found on the Firmware Repository or Wiki.

Discord

Join the RetroTINK Discord for live assistance.Note about HDMI Splitters
Please use only regulated and certified HDMI splitters with approved power supplies that output a complaint 5V. Damage to your device caused by the use of unapproved HDMI splitters is not covered under warranty.
